Immunohistochemical analysis of paraffin-embedded human rectal cancer tissue slide using 84292-4-RR (ADAM17 antibody) at dilution of 1:500 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 84292-4-PBS in a different storage buffer formulation.

1x10^6 HCT 116 cells were intracellularly stained with 0.25 ug ADAM17 Recombinant antibody (84292-4-RR, Clone:241305A2) and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2)(red), or 0.25 ug Rabbit IgG Isotype Control RecAb (98136-1-RR, Clone: 240953C9) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer. This data was developed using the same antibody clone with 84292-4-PBS in a different storage buffer formulation.

Various lysates were subjected to SDS PAGE followed by western blot with 84292-4-RR (ADAM17 antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 84292-4-PBS in a different storage buffer formulation.

The mean ADAM17 concentration was determined to be 18.51 ng/mL in THP-1 cell extract based on a 4.4 mg/mL extract load and 13.76 ng/mL in A549 cell extract based on a 2.7 mg/mL extract load.

Serum of six individual healthy human donors was measured. The human ADAM17 concentration of detected samples was determined to be 1,898.9 pg/mL with a range of 21.5 - 8,096.2 ng/mL.

Sandwich ELISA standard curve of MP01169-3, Human ADAM17 Recombinant Matched Antibody Pair - PBS only. 84292-3-PBS was coated to a plate as the capture antibody and incubated with serial dilutions of standard Ag32418. 84292-4-PBS was HRP conjugated as the detection antibody. Range: 78.1-5000 pg/mL

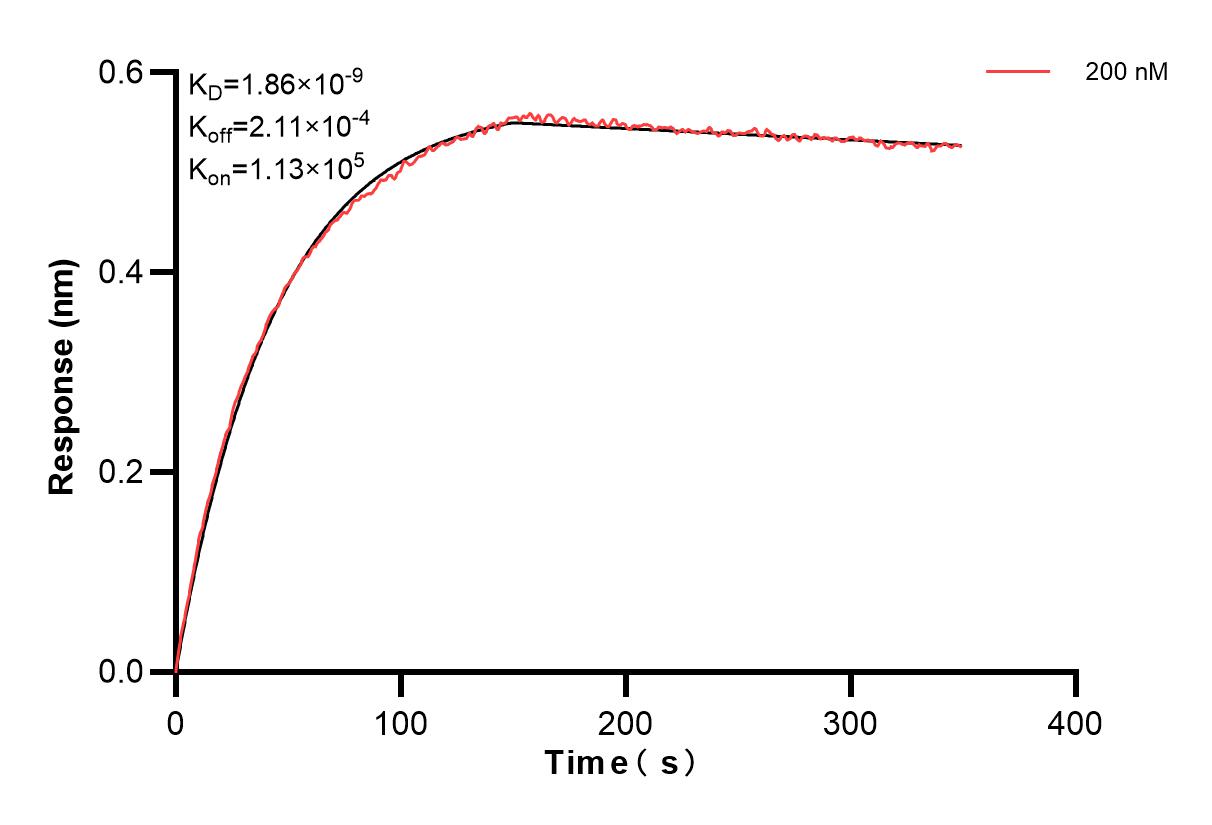

Biolayer interferometry (BLl) kinetic assay of 84292-4-PBS against Human ADAM17 was performed. The affinity constant is 1.86 nM.

Biolayer interferometry (BLl) kinetic assays of 84292-4-RR against Human ADAM17 were performed. The affinity constant is 0.385 nM.
