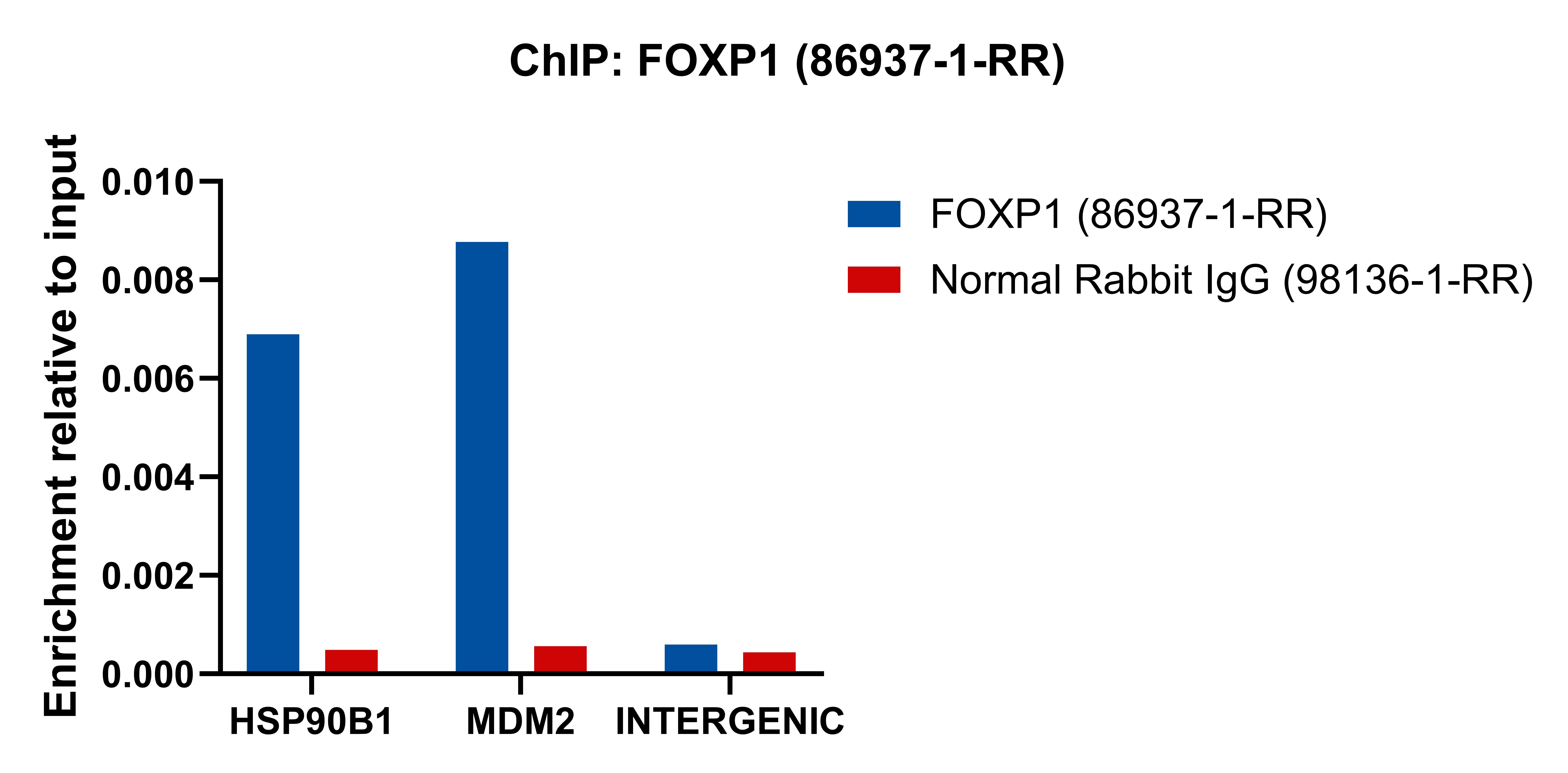

Chromatin was prepared from Raji cells. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 15 µg of cross-linked chromatin, 5 µg of FOXP1 (86937-1-RR) or 5 ug of Normal Rabbit IgG (98136-1-RR), and 20 µl of Protein A Magarose Beads. The immunoprecipitated DNA was quantified by real-time PCR. This data was developed using the same antibody clone with 86937-1-PBS in a different storage buffer formulation.

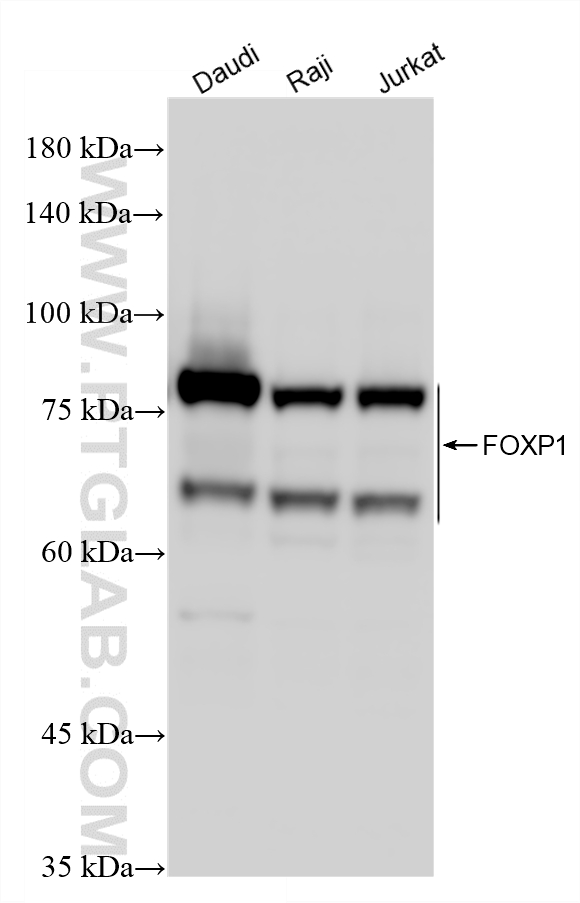

Various lysates were subjected to SDS PAGE followed by western blot with 86937-1-RR (FOXP1 antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 86937-1-PBS in a different storage buffer formulation.

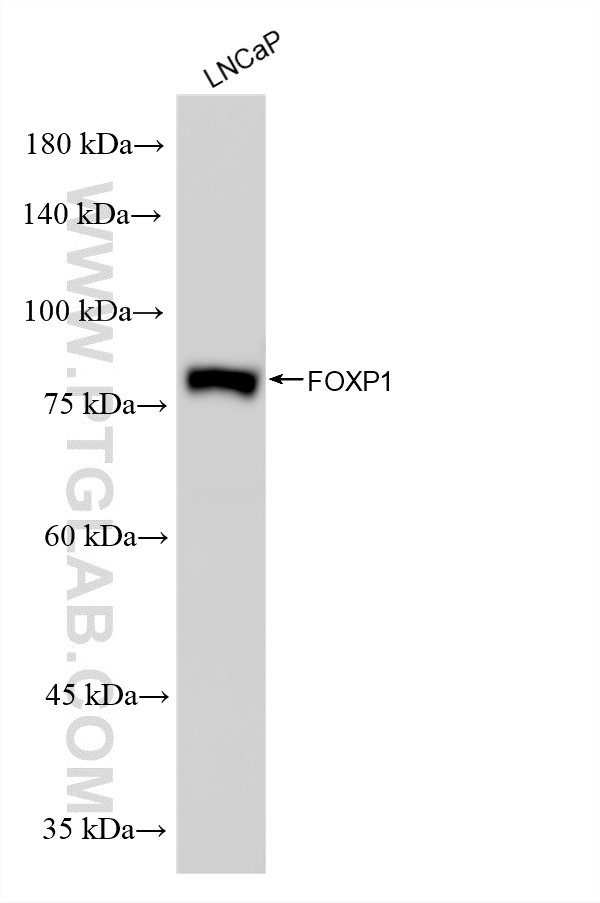

Various lysates were subjected to SDS PAGE followed by western blot with 86937-1-RR (FOXP1 antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 86937-1-PBS in a different storage buffer formulation.

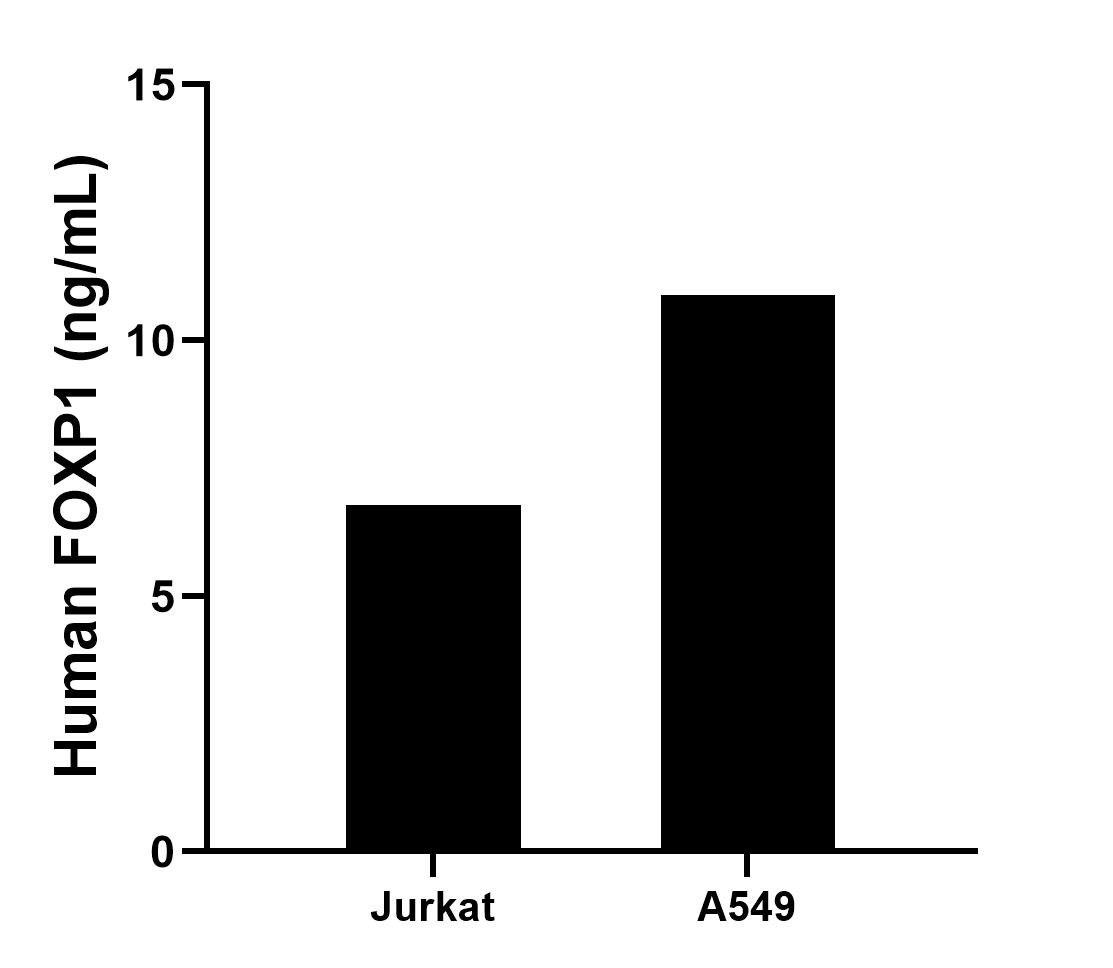

The mean FOXP1 concentration was determined to be 6.79 ng/mL in Jurkat cell extract based on a 1.2 mg/mL extract load and 10.88 ng/mL in A549 cell extract based on a 1.2 mg/mL extract load.

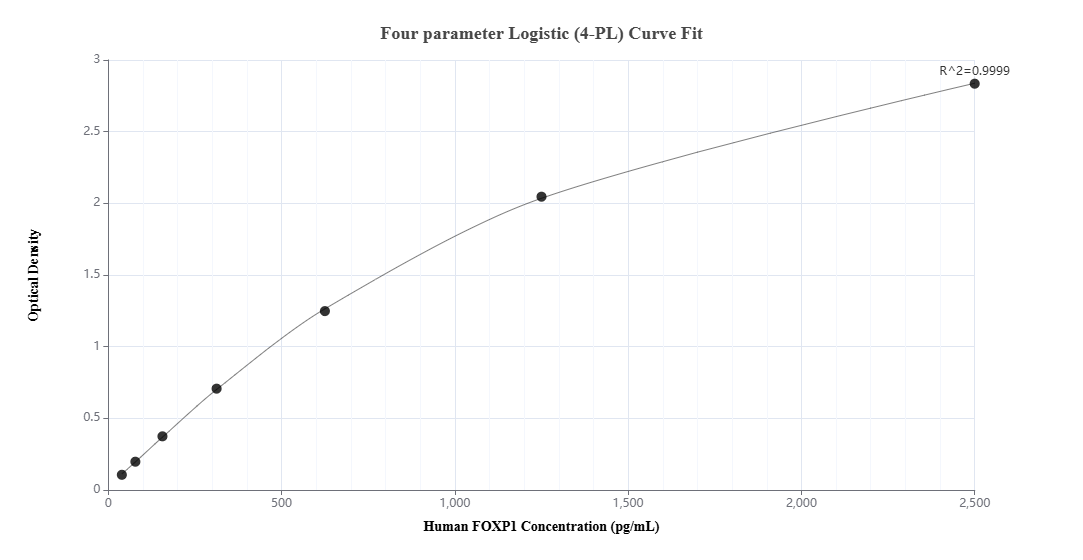

Sandwich ELISA standard curve of MP02841-1, Human FOXP1 Recombinant Matched Antibody Pair - PBS only. 86937-2-PBS was coated to a plate as the capture antibody and incubated with serial dilutions of standard Ag17045. 86937-1-PBS was HRP conjugated as the detection antibody. Range: 39.1-2500 pg/mL

Immunofluorescent analysis of (4% PFA) fixed Jurkat cells using FOXP1 antibody (86937-1-RR, Clone: 243153D3 ) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2), CL594-Phalloidin (red). This data was developed using the same antibody clone with 86937-1-PBS in a different storage buffer formulation.

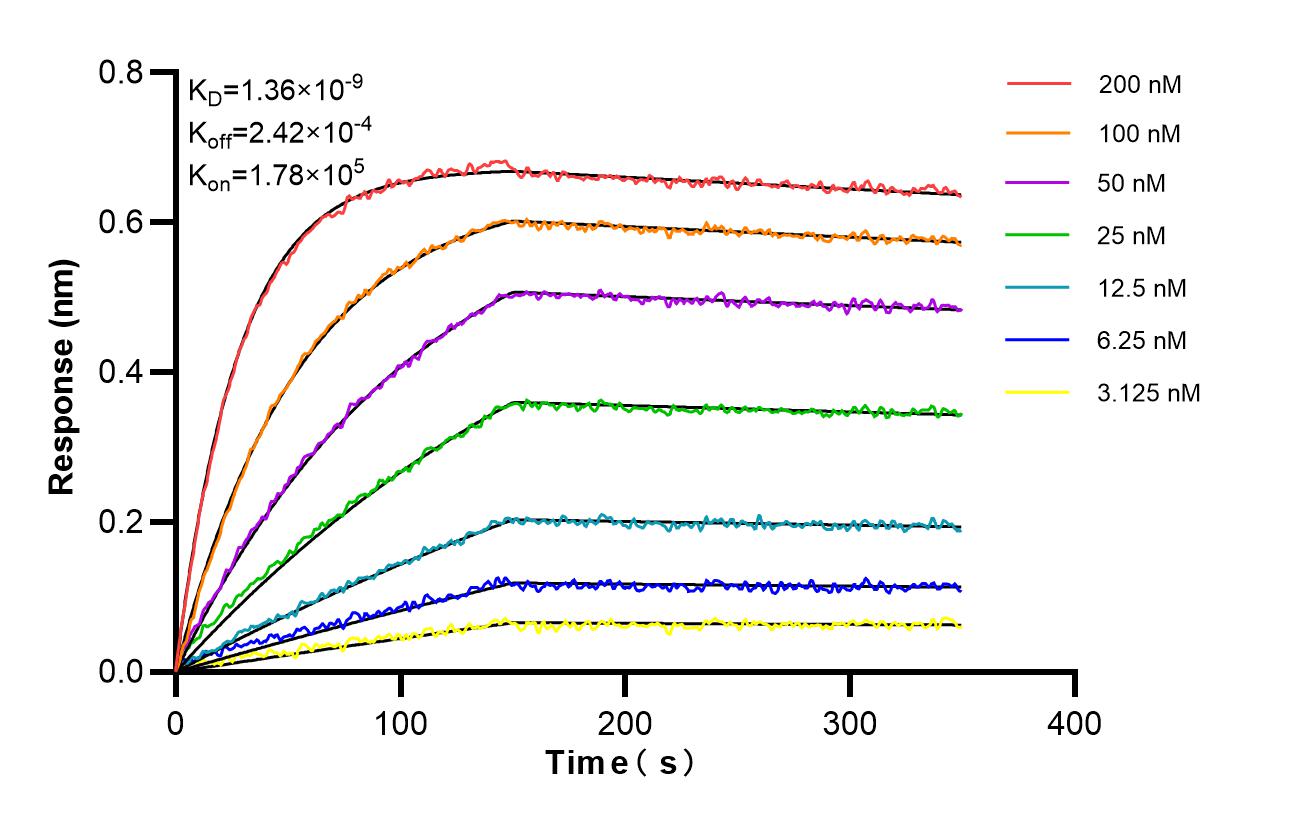

Biolayer interferometry (BLl) kinetic assays of 86937-1-RR against Human FOXP1 were performed. The affinity constant is 1.36 nM.
