验证数据展示

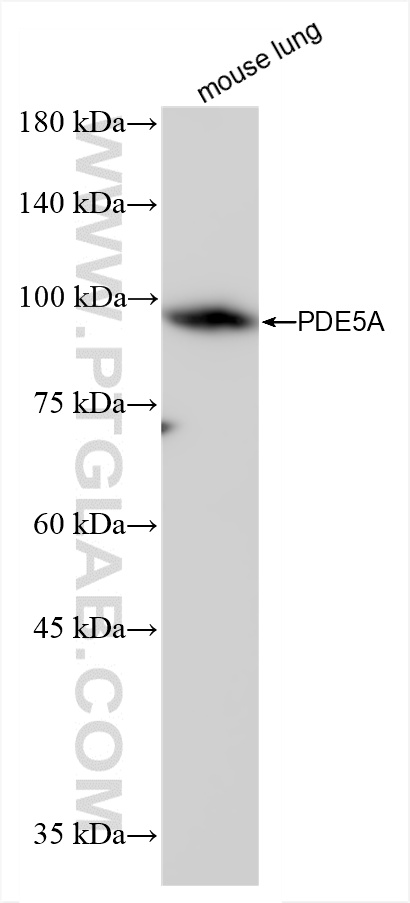

  • WB analysis of mouse lung using 85030-1-RR (same clone as 85030-1-PBS)

    WB analysis of mouse lung using 85030-1-RR (same clone as 85030-1-PBS)

    mouse lung tissue were subjected to SDS PAGE followed by western blot with 85030-1-RR (PDE5A antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 85030-1-PBS in a different storage buffer formulation.

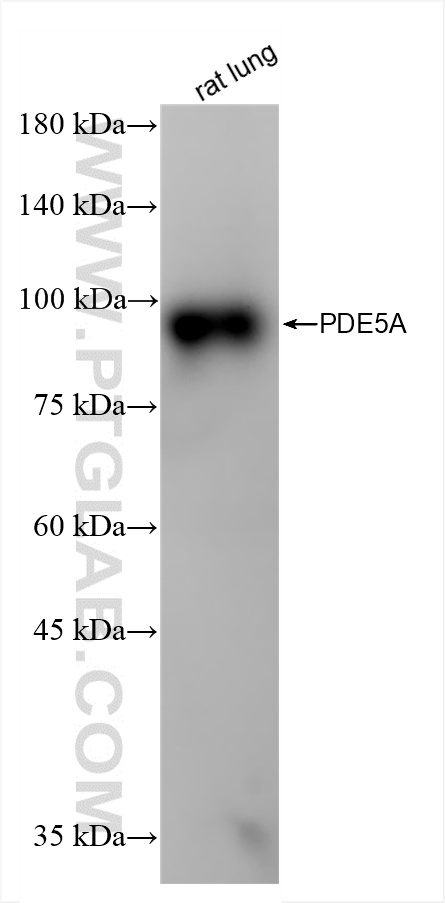

  • WB analysis of rat lung using 85030-1-RR (same clone as 85030-1-PBS)

    WB analysis of rat lung using 85030-1-RR (same clone as 85030-1-PBS)

    rat lung tissue were subjected to SDS PAGE followed by western blot with 85030-1-RR (PDE5A antibody) at dilution of 1:5000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 85030-1-PBS in a different storage buffer formulation.

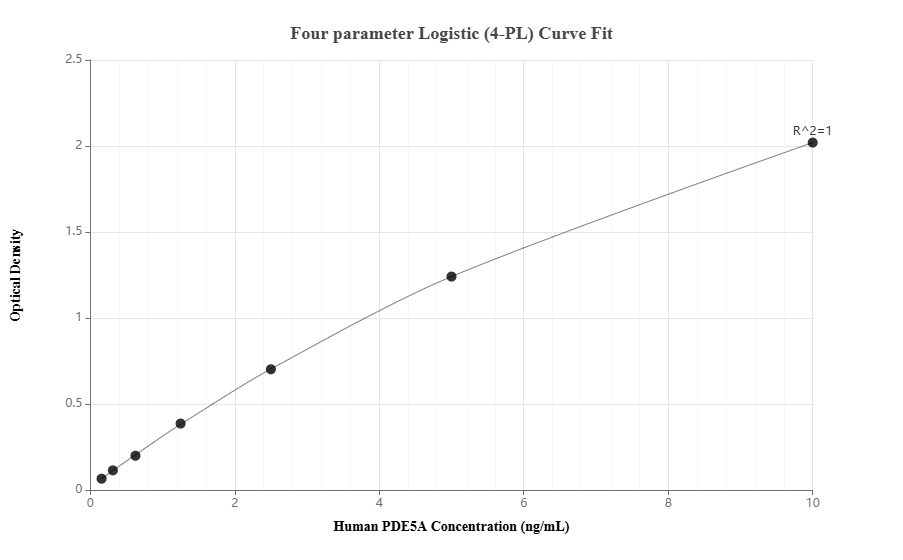

  • Sandwich ELISA standard curve of MP01762-3

    Sandwich ELISA standard curve of MP01762-3

    Sandwich ELISA standard curve of MP01762-3, Human PDE5A Recombinant Matched Antibody Pair - PBS only. 85030-4-PBS was coated to a plate as the capture antibody and incubated with serial dilutions of standard Ag18779. 85030-1-PBS was HRP conjugated as the detection antibody. Range: 0.156-10 ng/mL

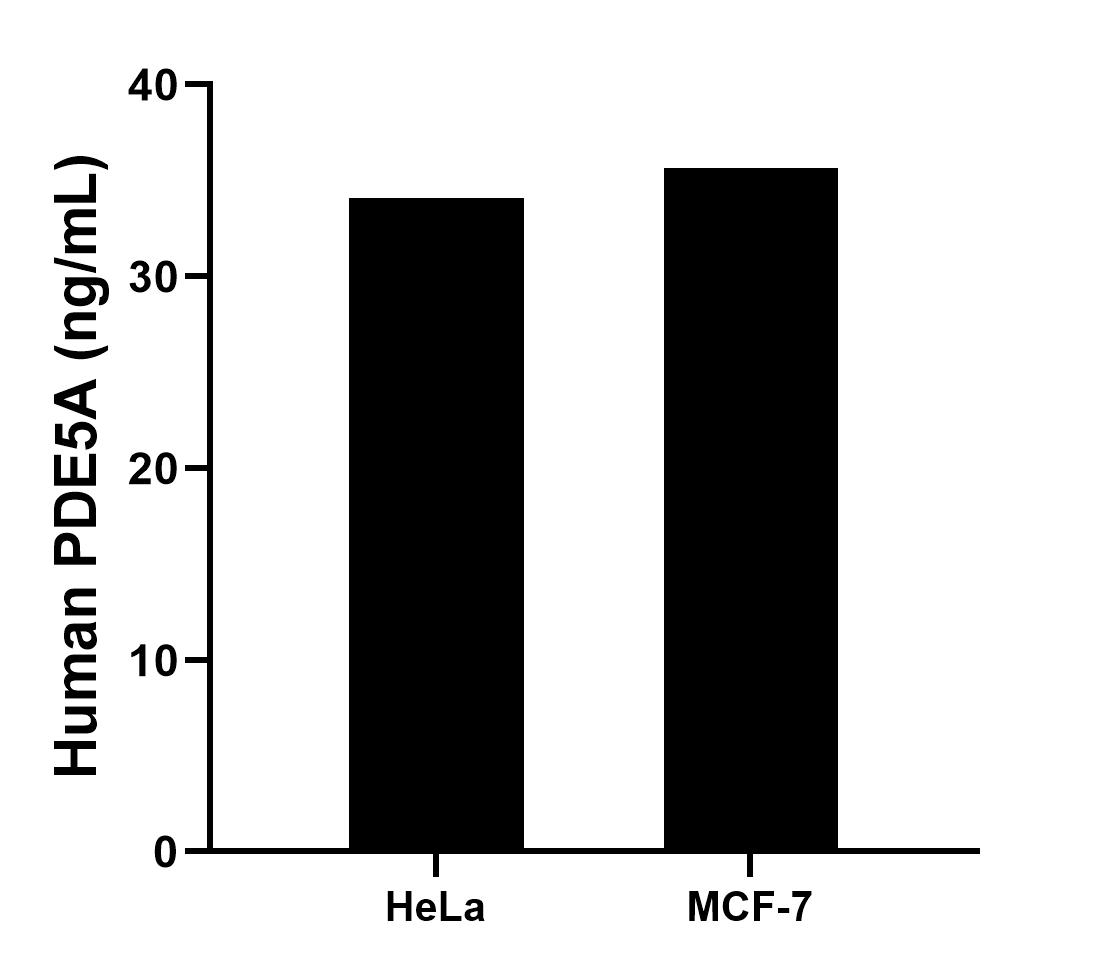

  • Sample test of MP01762-3

    Sample test of MP01762-3

    The mean PDE5A concentration was determined to be 34.07 ng/mL in HeLa cell extract based on a 1.5 mg/mL extract load and 35.64 ng/mL in MCF-7 cell extract based on a 1.2 mg/mL extract load.

  • IF Staining of SKOV-3 using 85030-1-RR (same clone as 85030-1-PBS)

    IF Staining of SKOV-3 using 85030-1-RR (same clone as 85030-1-PBS)

    Immunofluorescent analysis of (4% PFA) fixed SKOV-3 cells using PDE5A antibody (85030-1-RR, Clone: 242597B10 ) at dilution of 1:400 and CoraLite®488-Conjugated Goat Anti-Rabbit IgG(H+L) (SA00013-2). This data was developed using the same antibody clone with 85030-1-PBS in a different storage buffer formulation.

  • Cytometric bead array standard curve of MP01762-1

    Cytometric bead array standard curve of MP01762-1

    Cytometric bead array standard curve of MP01762-1, PDE5A Recombinant Matched Antibody Pair, PBS Only. Capture antibody: 85030-2-PBS. Detection antibody: 85030-1-PBS. Standard: Ag18779. Range: 0.625-80 ng/mL.

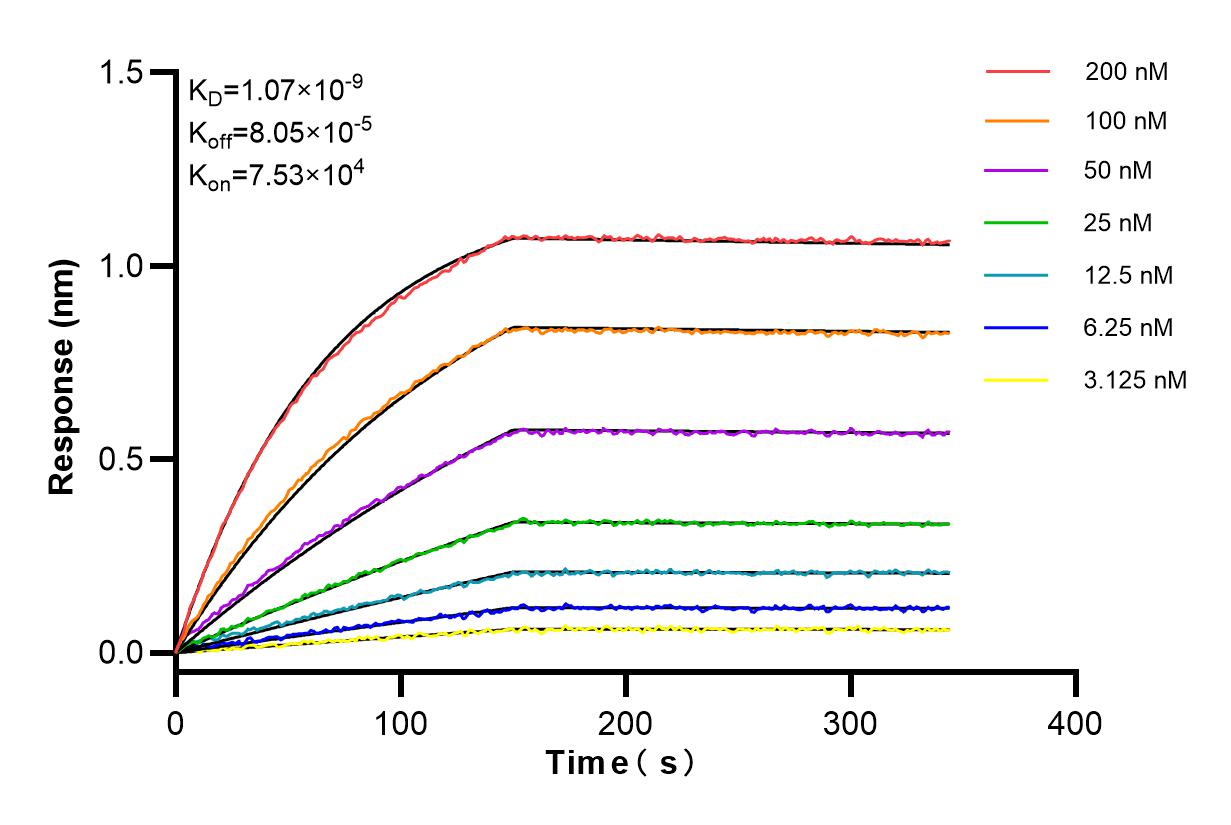

  • Affinity and Kinetic Characterization of 85030-1-RR

    Affinity and Kinetic Characterization of 85030-1-RR

    Biolayer interferometry (BLl) kinetic assays of 85030-1-RR against Human PDE5A were performed. The affinity constant is 1.07 nM.

PDE5A Recombinant antibody, PBS Only (Detector)

PDE5A Uni-rAbTM Recombinant Antibody for WB, IF/ICC, Cytometric bead array, Sandwich ELISA, Indirect ELISA, Sample test
Cat No. 85030-1-PBS

产品说明书

CloneNo. 242597B10

宿主/亚型

Rabbit / IgG

种属反应性

human, mouse, rat

应用

WB, IF/ICC, Cytometric bead array, Sandwich ELISA, Indirect ELISA, Sample test

别名

EC:3.1.4.35, CN5A, cGMP-specific 3',5'-cyclic phosphodiesterase, cGMP-binding cGMP-specific phosphodiesterase, CGB-PDE

缓冲液配方:  PBS Only
PBS and Azide
PBS Only
偶联物:  Unconjugated
规格:

-/ -

点击咨询售前客服

点击咨询售后客服

Planning an IHC experiment? We recommend our IHCeasy PDE5A Ready-To-Use IHC Kit. PDE5A primary antibody included.

产品信息

85030-1-PBS targets PDE5A as part of a matched antibody pair:

MP01762-1: 85030-2-PBS capture and 85030-1-PBS detection (validated in Cytometric bead array)

MP01762-3: 85030-4-PBS capture and 85030-1-PBS detection (validated in Sandwich ELISA)

Unconjugated rabbit recombinant monoclonal antibody in PBS only (BSA and azide free) storage buffer at a concentration of 1 mg/mL, ready for conjugation. Created using Proteintech’s proprietary in-house recombinant technology. Recombinant production enables unrivalled batch-to-batch consistency, easy scale-up, and future security of supply.

This conjugation ready format makes antibodies ideal for use in many applications including: ELISAs, multiplex assays requiring matched pairs, mass cytometry, and multiplex imaging applications.Antibody use should be optimized by the end user for each application and assay.

经测试应用 WB, IF/ICC, Cytometric bead array, Sandwich ELISA, Indirect ELISA, Sample test Application Description
经测试反应性 human, mouse, rat
免疫原 PDE5A fusion protein Ag18779 种属同源性预测
宿主/亚型 Rabbit / IgG
抗体类别 Recombinant
产品类型 Antibody
全称 phosphodiesterase 5A, cGMP-specific
别名 EC:3.1.4.35, CN5A, cGMP-specific 3',5'-cyclic phosphodiesterase, cGMP-binding cGMP-specific phosphodiesterase, CGB-PDE
计算分子量 875 aa, 100 kDa
观测分子量 100 kDa
GenBank蛋白编号BC126233
基因名称 PDE5A
Gene ID (NCBI) 8654
偶联类型 Unconjugated
形式 Liquid
纯化方式Protein A purification
UNIPROT IDO76074
储存缓冲液 PBS only , pH 7.3
储存条件Store at -80°C.
The product is shipped with ice packs. Upon receipt, store it immediately at -80°C

背景介绍

PDE5A (cGMP-binding cGMP-specific phosphodiesterase) plays a role in signal transduction by regulating the intracellular concentration of cyclic nucleotides. This phosphodiesterase catalyzes the specific hydrolysis of cGMP to 5'-GMP. Through alternative splicing, the PDE5A gene produces three proteins (PDE5A1, PDE5A2, and PDE5A3) that differ in their N termini and range in mass from 89 to 105 kDa. (PMID: 25704994; 21215707). A second 70 kDa band was consistently observed in heart tissue that either reflected a splice variant or proteolytic fragment of PDE5A. (PMID: 15576651).
