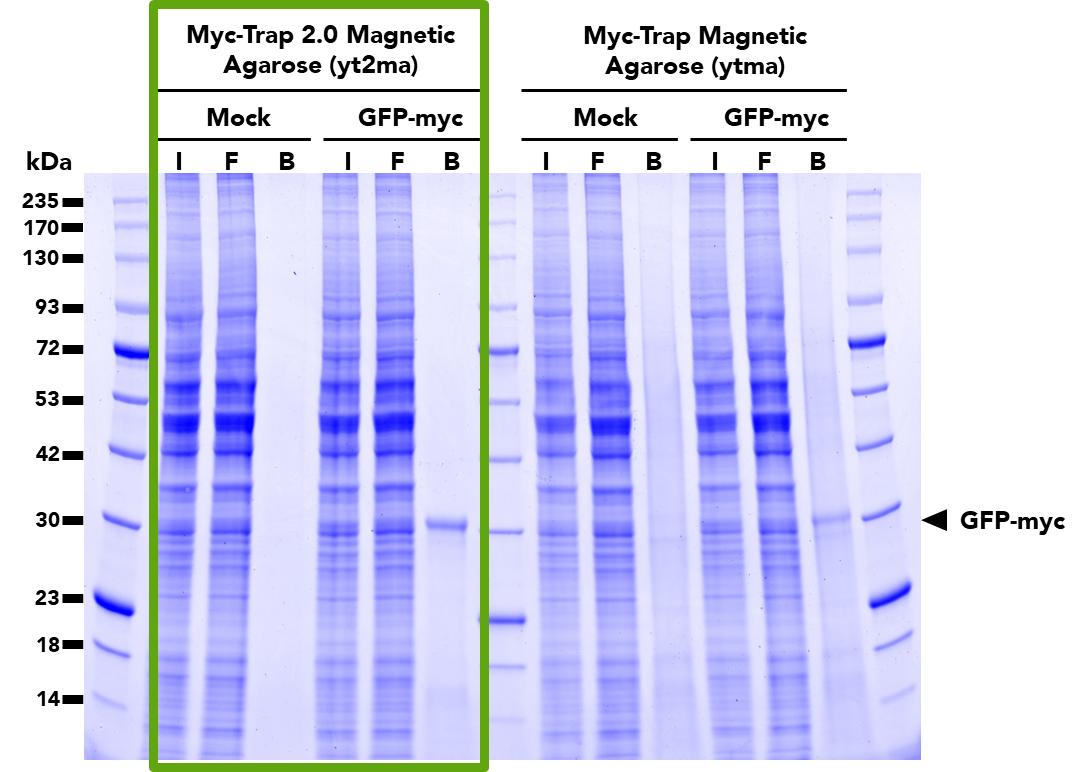

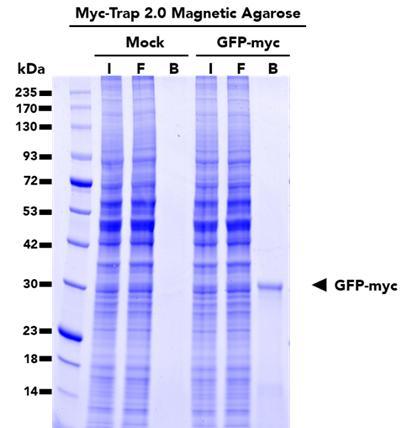

Validation Data Gallery
Product Information
The ChromoTek Myc-Trap® 2.0 Magnetic Agarose consists of an anti-Myc VHH, which is coupled to magnetic agarose beads. It can be used for the immunoprecipitation of Myc-fusion proteins from cell extracts of various organisms.
| Description | Immunoprecipitation of myc-tagged proteins and their interacting factors with anti-Myc tag Nanobody conjugated to magnetic agarose beads. • Fast, reliable & efficient one-step immunoprecipitation • Ready-to-use • No heavy & light antibody chains • Stable under harsh washing conditions • Suitable for downstream mass spec analysis • Works in samples from: mammals, plants, yeast, etc. |
| Applications | IP, Co-IP |
| Specificity/Target | Binds specifically to the Myc-tag (sequence EQKLISEEDL) at the N-terminus, C-terminus, or internal site of the fusion protein. Endogenous c-myc is NOT bound. |
| Binding Capacity | 20 μg of recombinant myc-tagged protein (~30 kDa) per 25 μL bead slurry |
| Conjugate | Magnetic Agarose beads; ~40 um (cross-linked 6% magnetic agarose beads) |
| Elution buffer | 2x SDS-sample buffer (Lämmli), 200 mM glycine pH 2.5, 0.1 mg/ml ChromoTek 2x Myc-peptide (2yp) in PBS pH 7.4 |
| Wash Buffer Compatibility | 2M NaCl, 5 mM DTT, 5 mM β-mercaptoethanol, 5 mM TCEP, 2% NP40, 2% Triton X-100, 0.1% SDS, 1 M Urea |
| Type | Nanobody |
| Class | Recombinant |
| Host | Alpaca |
| Affinity (KD) | 770 nM |
| Compatibility with mass spectrometry | The Myc-Trap 2.0 is optimized for on-bead digestion. For the application note, please click here: On-bead digest protocol for mass spectrometry |
| RRID | AB_3717367 |
| Storage Buffer | 20% ethanol |
| Storage Condition | Shipped at ambient temperature. Upon receipt store at +4°C. Stable for one year. Do not freeze! |
Documentation
| SDS |
|---|
| yt2ma_SDS_Myc-Trap®2.0 Magnetic Agarose (EN) |
| Protocol |
|---|
| yt2ma_Protocol_Myc-Trap®2.0 Magnetic Agarose |
| Datasheet |
|---|
| Myc-Trap® 2.0 Magnetic Agarose Datasheet |
Publications
| Application | Title |
|---|---|
Cell Chem Biol Metabolic control of innate immune activation in TET2-mutant clonal hematopoiesis. | |
J Cell Sci TBC1D15 functions as an Arl4D GAP and promotes the mitochondrial translocation of Arl4D for organelle homeostasis. | |
Nat Commun Interplay of SLC33A1-dependent and -independent Golgi sialic acid O-acetylation in CASD1 catalysis. | |
Proc Natl Acad Sci U S A TON1 and FASS are required to recruit myosin VIII, a cell division guidance factor. | |
Plant Commun Antiviral RNAi defective 4 (AVI4) encodes a lysophospholipid acyltransferase coopting AVI2 and ATG8a to promote antiviral immunity in Arabidopsis. |
