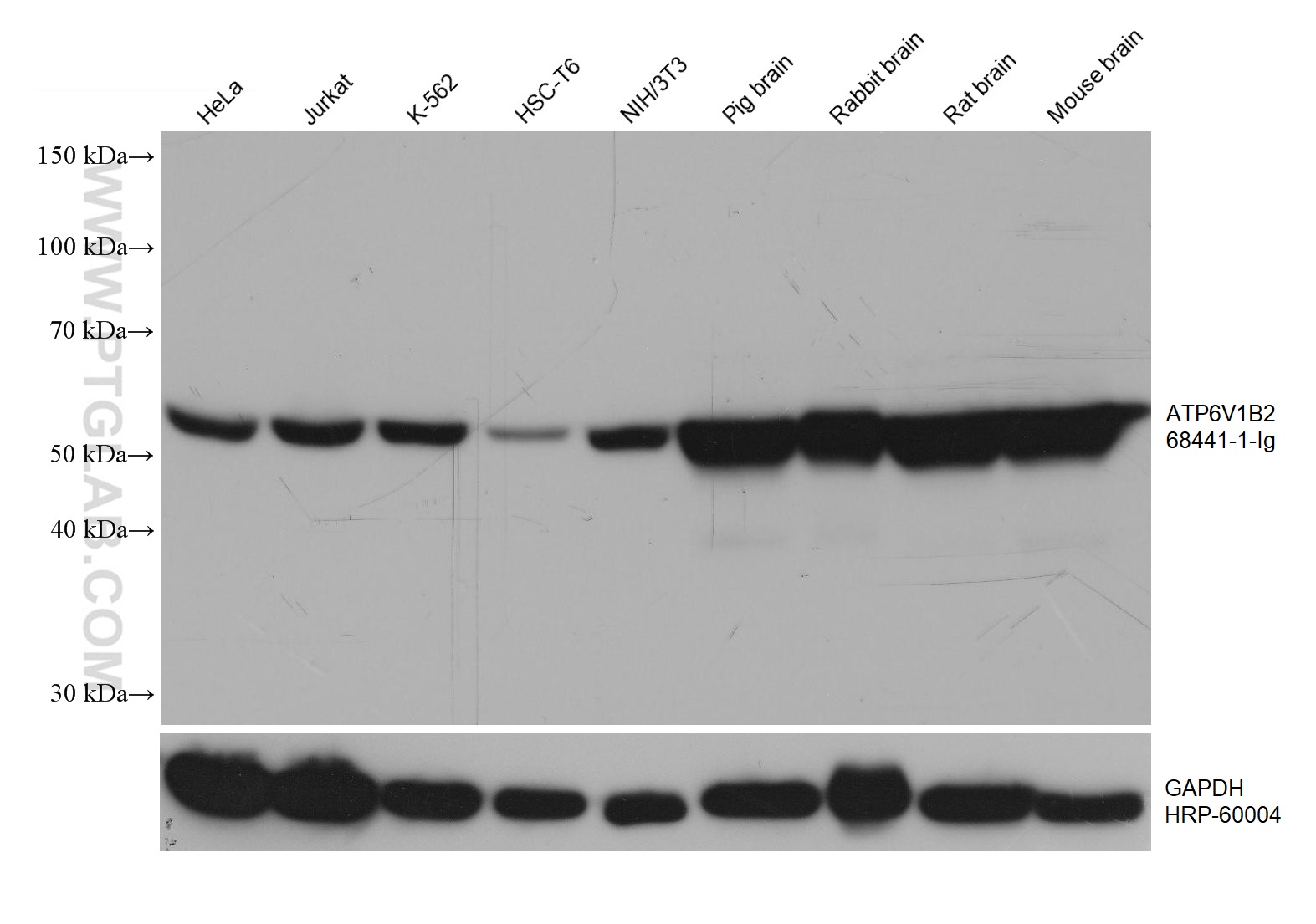

Various lysates were subjected to SDS PAGE followed by western blot with 68441-1-Ig (ATP6V1B2 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours. The membrane was stripped and reblotted with HRP-conjugated GAPDH Monoclonal antibody (HRP-60004) as loading control. This data was developed using the same antibody clone with 68441-1-PBS in a different storage buffer formulation.

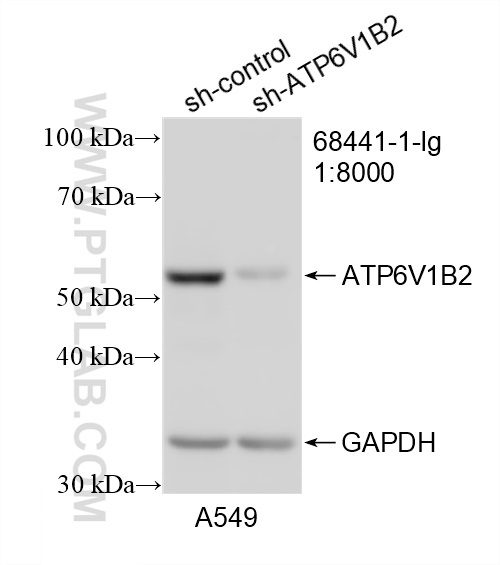

WB result of ATP6V1B2 antibody (68441-1-Ig; 1:8000; incubated at room temperature for 1.5 hours) with sh-Control and sh-ATP6V1B2 transfected A549 cells. This data was developed using the same antibody clone with 68441-1-PBS in a different storage buffer formulation.

IP result of anti-ATP6V1B2 (IP:68441-1-Ig, 4ug; Detection:68441-1-Ig 1:4000) with HeLa cells lysate 2000 ug. This data was developed using the same antibody clone with 68441-1-PBS in a different storage buffer formulation.

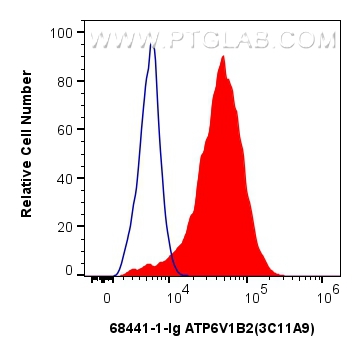

1x10^6 HeLa cells were intracellularly stained with 0.8 ug ATP6V1B2 Monoclonal antibody (68441-1-Ig, Clone:3C11A9) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) (SA00013-1)(red), or 0.8 ug Mouse IgG1 isotype control Mouse McAb (66360-1-Ig, Clone: 1F8D3) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer. This data was developed using the same antibody clone with 68441-1-PBS in a different storage buffer formulation.
