NDUFS1 Monoclonal antibody

NDUFS1 Monoclonal Antibody for IF/ICC, IHC, WB, ELISA

Host / Isotype

Mouse / IgG1

Reactivity

Human, Mouse, Rat, Pig, Rabbit

Applications

IF/ICC, IHC, WB, ELISA

Conjugate

Unconjugated

CloneNo.

3H5E8

Cat No : 68253-1-Ig

Print datasheet

Synonyms

CI 75Kd, Complex I 75kD, NDUFS1, PRO1304

验证数据展示

  • WB analysis using 68253-1-Ig

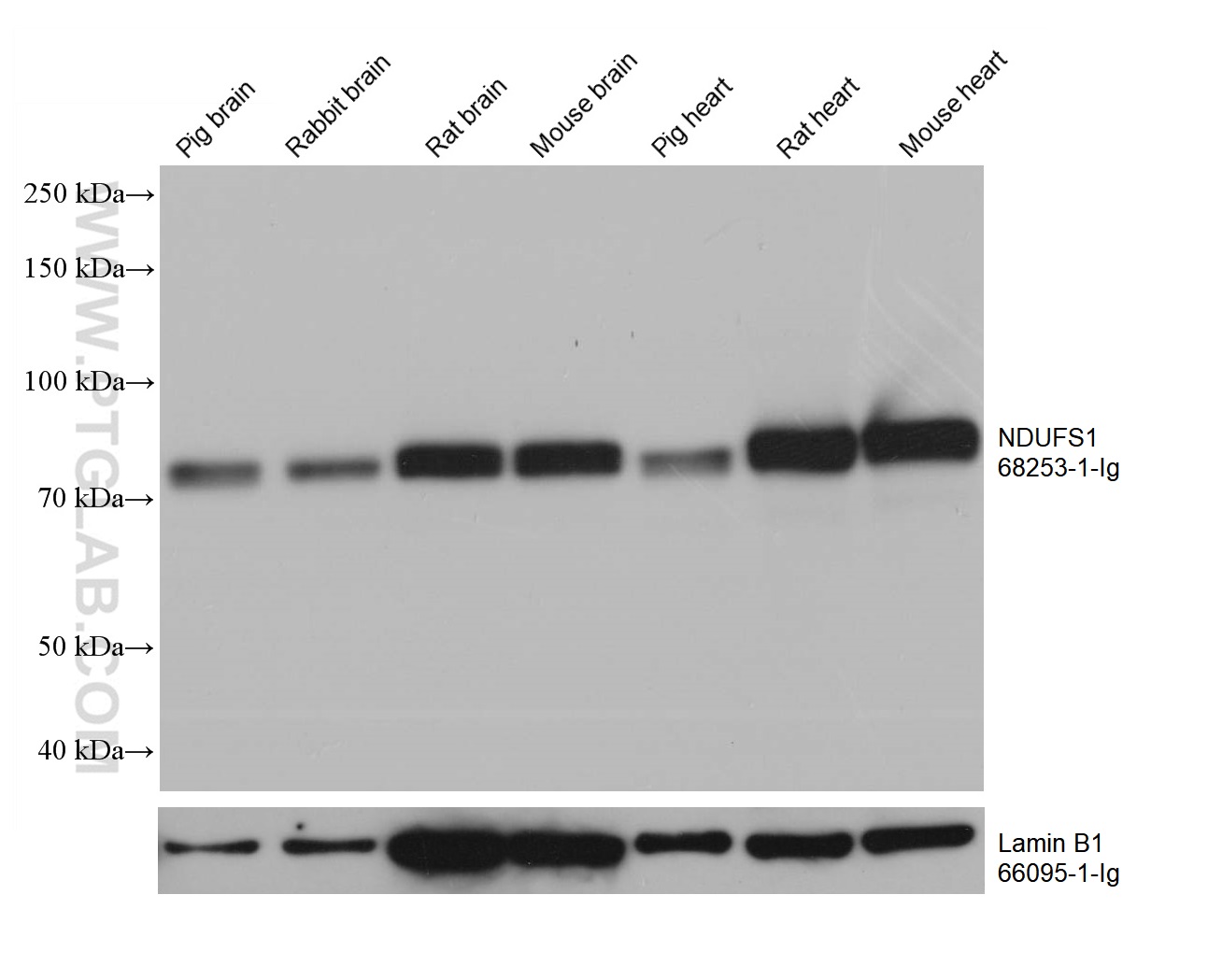

    WB analysis using 68253-1-Ig

    Various lysates were subjected to SDS PAGE followed by western blot with 68253-1-Ig (NDUFS1 antibody) at dilution of 1:20000 incubated at room temperature for 1.5 hours. The membrane was stripped and reblotted with Lamin B1 Monoclonal antibody (66095-1-Ig) as loading control.

  • IHC staining of mouse heart using 68253-1-Ig

    IHC staining of mouse heart using 68253-1-Ig

    Immunohistochemical analysis of paraffin-embedded mouse heart tissue slide using 68253-1-Ig (NDUFS1 antibody) at dilution of 1:1000 (under 10x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • IHC staining of mouse heart using 68253-1-Ig

    IHC staining of mouse heart using 68253-1-Ig

    Immunohistochemical analysis of paraffin-embedded mouse heart tissue slide using 68253-1-Ig (NDUFS1 antibody) at dilution of 1:1000 (under 40x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0).

  • IF Staining of HepG2 using 68253-1-Ig

    IF Staining of HepG2 using 68253-1-Ig

    Immunofluorescent analysis of (-20°C Ethanol) fixed HepG2 cells using NDUFS1 antibody (68253-1-Ig, Clone: 3H5E8 ) at dilution of 1:800 and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L).

经过测试的应用

Positive WB detected inpig brain tissue, HeLa cells, rabbit brain tissue, rat brain tissue, mouse brain tissue, pig heart tissue, rat heart tissue, mouse heart tissue
Positive IHC detected inmouse heart tissue
Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0
Positive IF detected inHepG2 cells
Planning an IF experiment? We recommend our CoraLite® Plus 488 conjugated versions of this antibody.

推荐稀释比

ApplicationDilution
Western Blot (WB)WB : 1:5000-1:50000
Immunohistochemistry (IHC)IHC : 1:500-1:2000
Immunofluorescence (IF)IF : 1:400-1:1600
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

产品信息

68253-1-Ig targets NDUFS1 in WB, IF, IHC, ELISA applications and shows reactivity with Human, Mouse, Rat, Pig, Rabbit samples.

Tested Applications IF/ICC, IHC, WB, ELISA
Tested Reactivity Human, Mouse, Rat, Pig, Rabbit
Immunogen NDUFS1 fusion protein Ag3135 种属同源性预测
Host / Isotype Mouse / IgG1
Class Monoclonal
Type Antibody
Full Name NADH dehydrogenase (ubiquinone) Fe-S protein 1, 75kDa (NADH-coenzyme Q reductase)
Synonyms CI 75Kd, Complex I 75kD, NDUFS1, PRO1304
Calculated Molecular Weight 727 aa, 79 kDa
Observed Molecular Weight68-81 kDa
GenBank Accession NumberBC030833
Gene Symbol NDUFS1
Gene ID (NCBI) 4719
Conjugate Unconjugated
Form Liquid
Purification MethodProtein G purification
UNIPROT IDP28331
Storage Buffer PBS with 0.02% sodium azide and 50% glycerol pH 7.3.
Storage ConditionsStore at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

背景介绍

The multisubunit NADH:ubiquinone oxidoreductase (75 kDa subunit, mitochondrial)(NDUFS1) is the first enzyme complex in the electron transport chain of mitochondria. It is also named as Complex I-75kD. By use of chaotropic agents, complex I can be fragmented into 3 different fractions: a flavoprotein fraction, an iron-sulfur protein (IP) fraction, and a hydrophobic protein (HP) fraction. NDUFS1 is the largest subunit of complex I and it is a component of the iron-sulfur (IP) fragment of the enzyme. NDUFS1 has some isoforms with the molecular mass of 68-81 kDa.

实验方案

Product Specific Protocols
WB protocol for NDUFS1 antibody 68253-1-IgDownload protocol
IHC protocol for NDUFS1 antibody 68253-1-IgDownload protocol
IF protocol for NDUFS1 antibody 68253-1-IgDownload protocol
